SL-300KIT

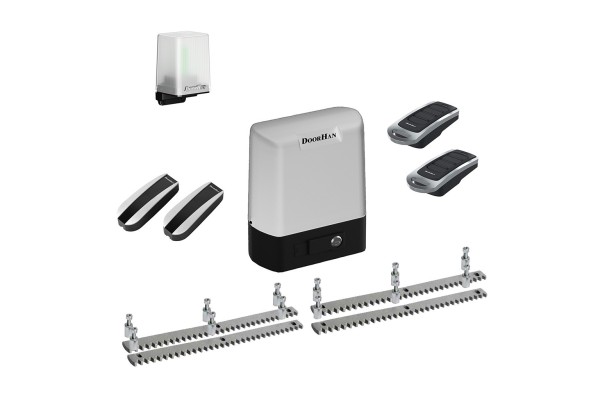

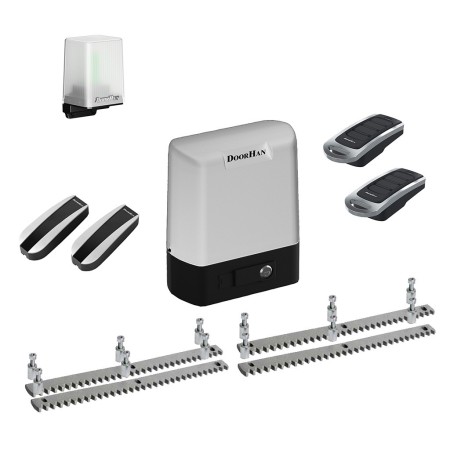

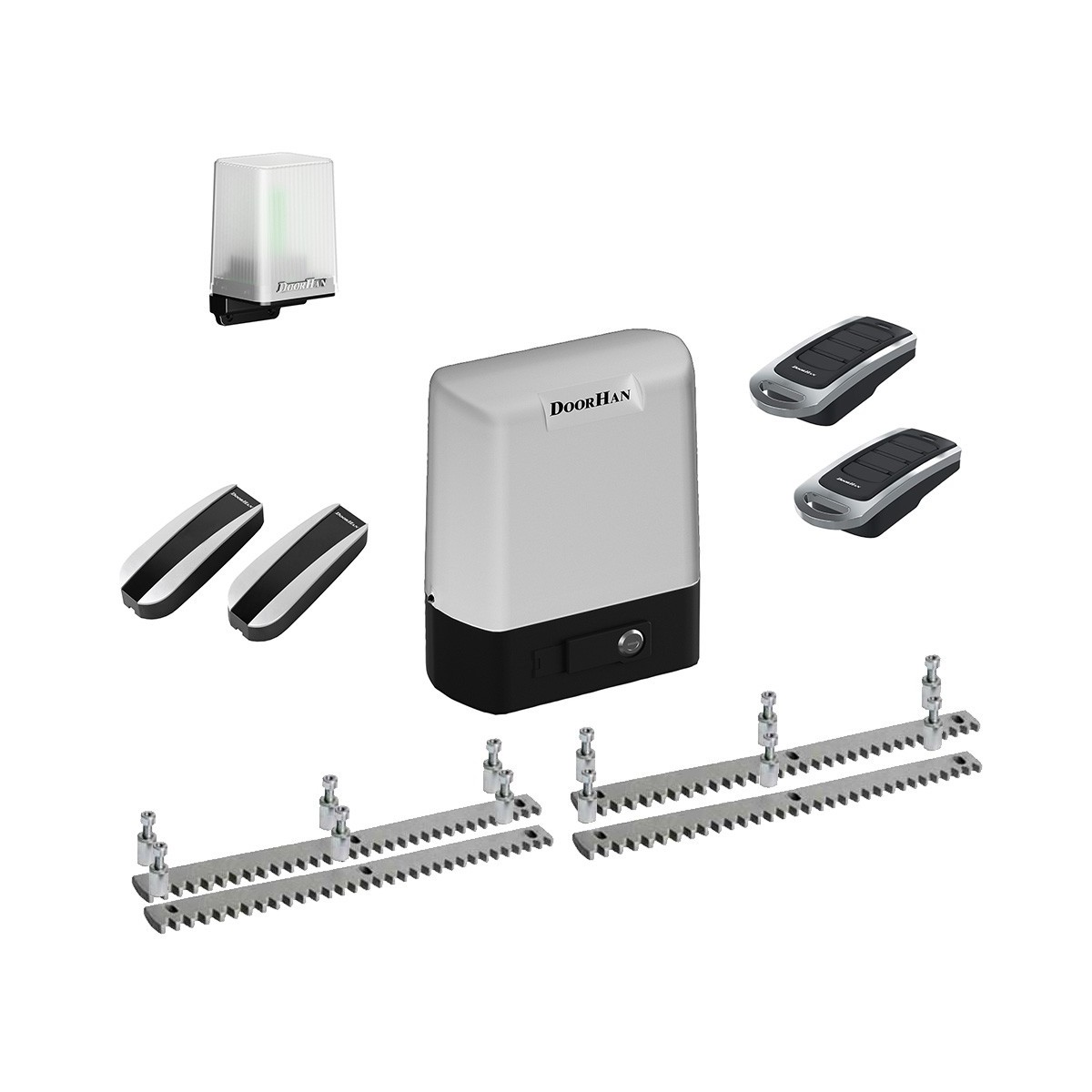

Antriebssatz für Schiebetore zur Automatisierung von Toren bis 300 kg und Öffnungsweite bis 3,5 m

  • -5%
  • Zestaw
Set für Schiebetore bis zu 3,5m und...
Set für Schiebetore bis zu 3,5m und...

Ta paczka zawiera

2.179,99 zł 2.294,99 zł -5%

Szczegóły produktu

Versorgungsspannung, V / Hz
220-240 / 50, 60
Motorspannung, V
220
Leistungsaufnahme, W
130
Stromverbrauch, A
1
Maximale Linienkraft, N
150
Maximales Drehmoment, Nm
7,5
Maximales Türblattgewicht, kg
280
Motordrehzahl, U / min
1380
Thermoschutz, °C
125
Verhältnis
1:32
Torgeschwindigkeit, m / min
9
Nutzungsintensität, %
50
Schutzart IP
IP54
Funksteuerung
433,92 MHz (maksymalnie 60 pilotów) *(Zwiększenie możliwe podczas instalowania zewnętrznego radia)
Abmessungen, mm
280 × 320 × 190
Management
tryb krokowy (impulsowy)
Farbe
grau
Endschalter
magnetisch
Kondensatorleistung, µF
7
Steuergerät
PCB-SL
Zahnrad
Z16
Zahnstange, mm
М4 × 12,566
Betriebstemperaturbereich, °C
-40...+55
Gewicht, kg
8
SL-300KIT
