NOTOUCHKIT

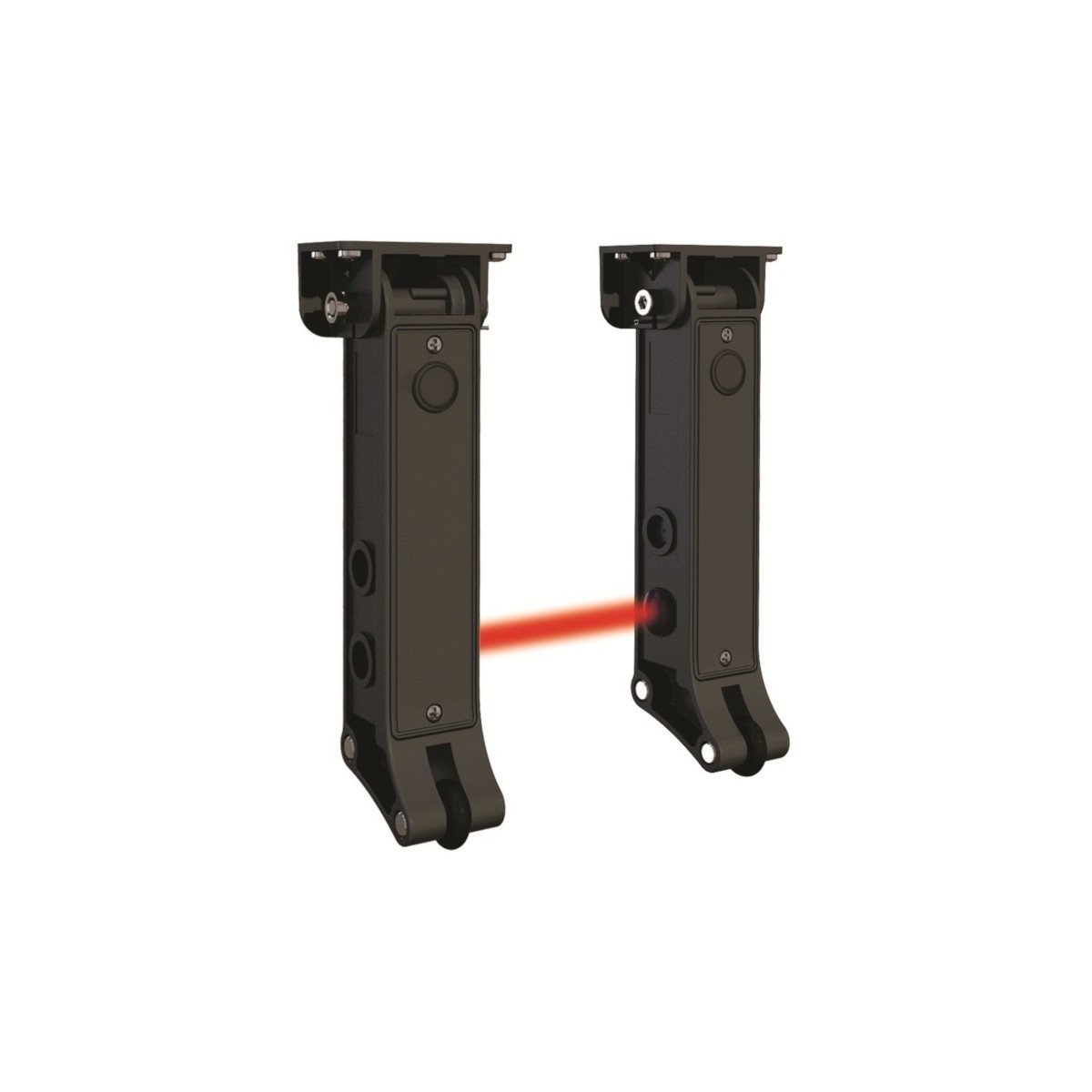

The Notouch security system is a device designed and patented to guarantee the safety of automations such as rolling shutters and sectional doors. Its peculiarity is that of preventing the physical contact of the obstacle with the edge of the automation. By installing the Notouch safety system on the final edge of the door or damper, the protection of the same is guaranteed by means of an infrared ray which is approximately 13 away. cm from the edge, which prevents contact. Equipped with a particular tilting system, it maintains control of the alignment of the radii of the elements from which it is composed in any condition. Quick and easy to install, it avoids measuring the impact forces that the installation of a mechanical edge would require by law.

Main advantages:

• Power supply: 12 or 24V ac / dc selectable by jumper
• Absorption Tx: 65 mA at 24V ac; Rx: 30 mA at 24V ac
• Range: 10 m
• Infrared modulation frequency: 1.33 Khz
• Wavelength: 950nm
• Relay contact rating: 1A at 24V ac
• Transmitter signaling LED: power supply present.
• Receiver signaling LED: when on, it indicates correct alignment
• Protection degree: IP54
• Dimensions: 190×34.60×32
• Weight: 310 grams per couple
