PHOTOCELL-N

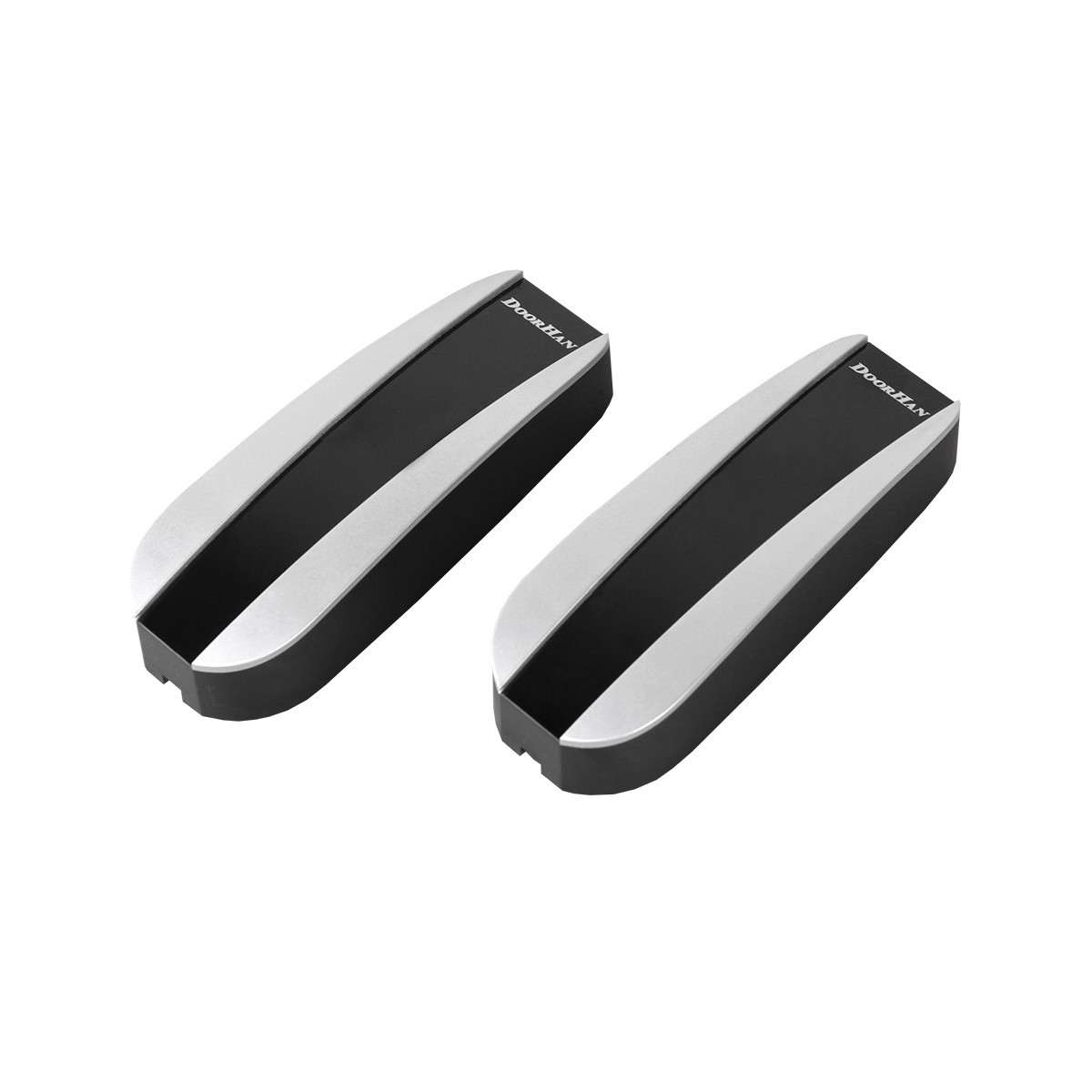

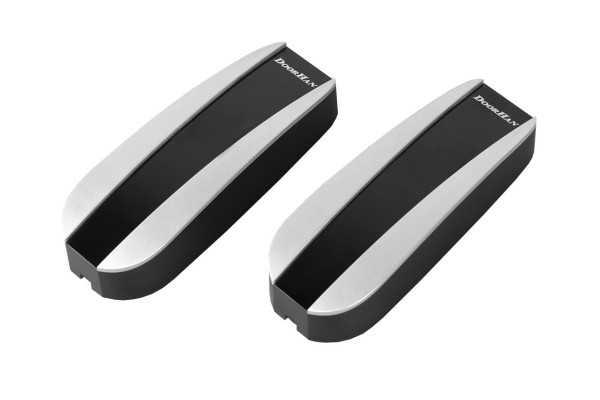

Photocells PHOTOCELL-N - a safety device consisting of an infrared transmitter and receiver that are installed in the gateway. If the infrared beam intersects, the control unit receives a signal about an obstacle in the dangerous zone of the automatic system, and the system generates a reaction that corresponds to the established logic of operation - stopping or reversing the gate leaf.

* - recommended 25m for stable operation.
In bad weather (fog, rain, dust etc.) The range can be reduced by 30%

Main advantages:
• the ability to connect to any supply voltage 12/24 V AC/DC;
• the connection of NO/NC control contact — availability of normally open contacts allows using the photocells as a control device;
• easy access to the terminals;
• dispertion of the beam angle at a distance of 20 m is 7°, eliminating the need for accurate positioning of the receiver according to the transmitter;
• modern ergonomic design;
• small size allows a convenient installation of photocells in the gate opening.
