- Supply voltage, V / Hz
- 207–253 / 50, 60
- Motor voltage, V
- 24 DC
- Power consumption, W
- 250
- Standby mode, W
- do 6
- Maximum force, N
- 1000
- Sectional door surface, m²
- 13
- Maximum sectional door height, mm
- depending on the rail used
- Maximum door leaf weight, kg
- 180
- Lifting speed of sectional door, mm / s
- 0,1 m/s
- Degree of protection IP
- IP20
- Radio control
- 433,92 MHz (maksymalnie 60 pilotów) *(Zwiększenie możliwe podczas instalowania zewnętrznego radia)
- Dimensions, mm
- 267 x 170 x 92
- Management
- tryb krokowy (impulsowy)
- Fuses
- zasilania — 2,5 A
- Transfer of traffic
- łańcuch / pas
- Colour
- Black
- Lamp off time, s
- 300
- Transmitter Frequency / Range
- 433 MHz / in open areas up to 50 m
- Operating temperature range, °C
- -20…+55

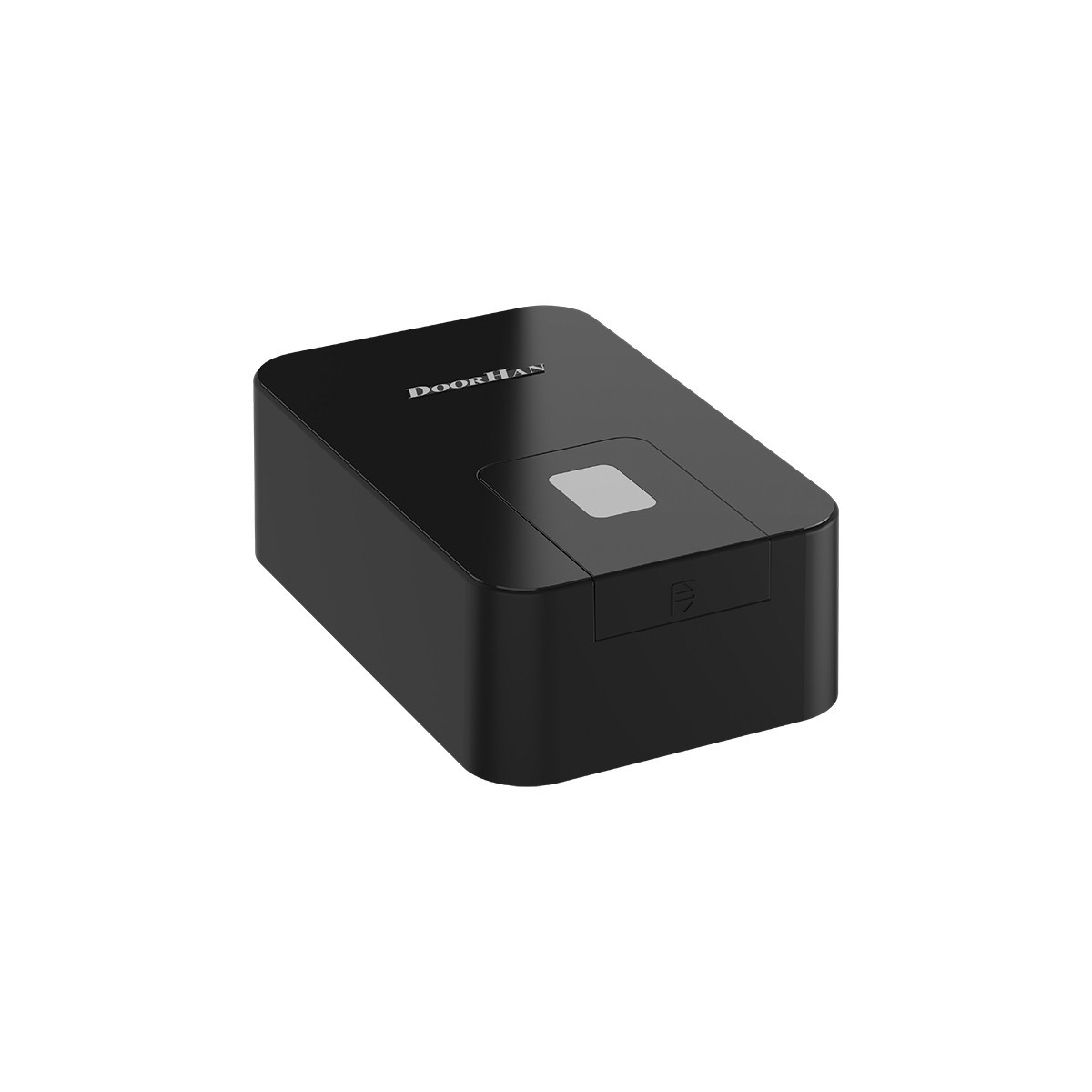

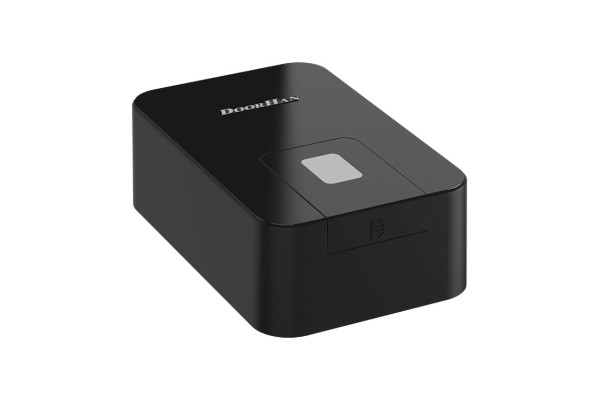

SECTIONAL-1000PRO
