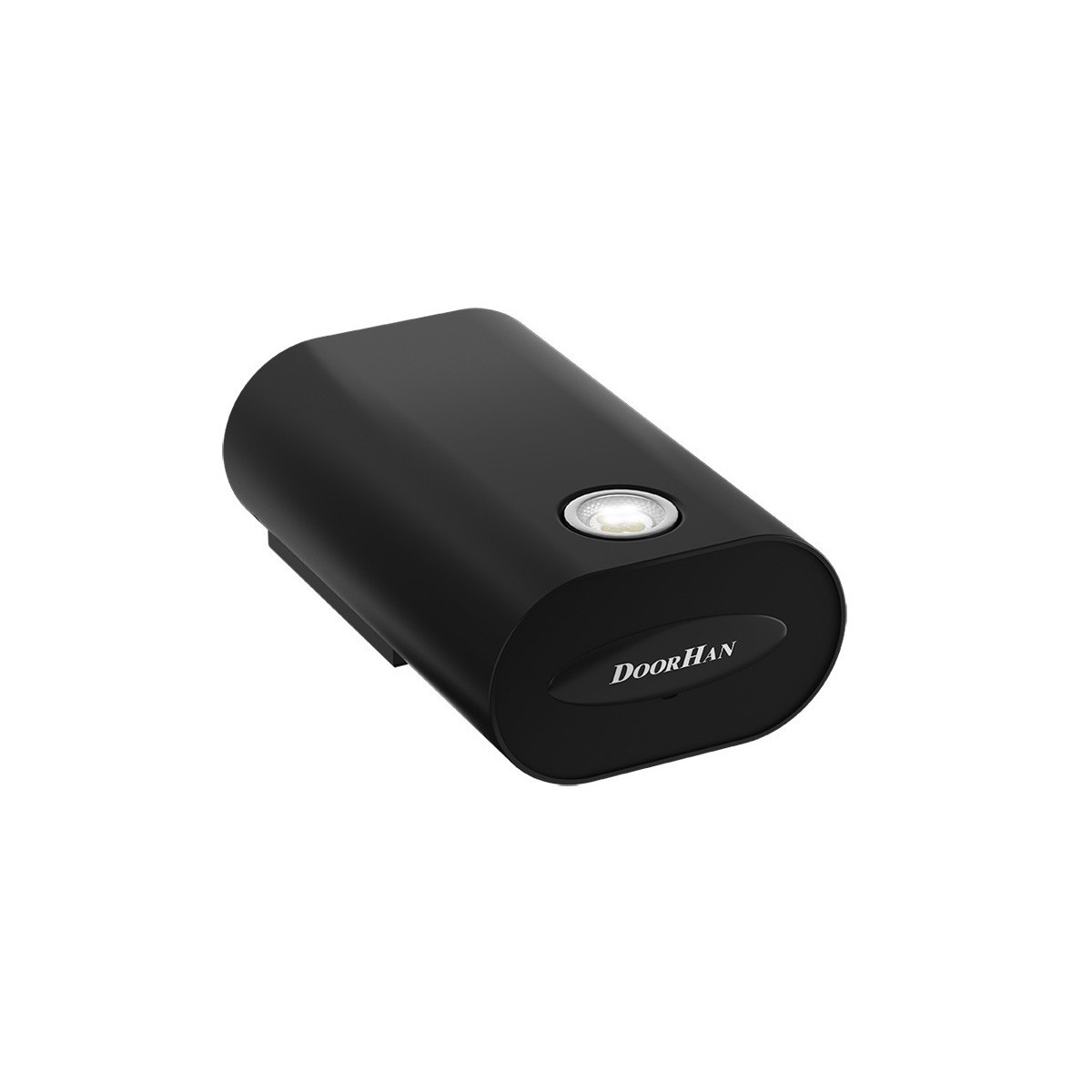

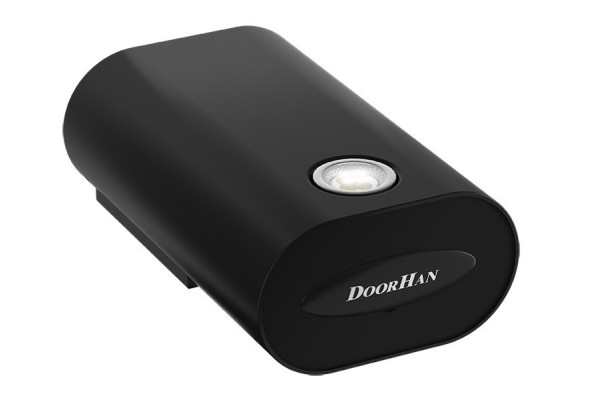

SECTIONAL-1200

Garage door opener up to 16m2 and 220kg

€227.99

(€243.03 za szt.)

Brutto

Supply voltage, V / Hz: 220-240 / 50, 60
Motor voltage, V: 24 DC
Power consumption, W: 300
Standby mode, W: do 6
Maximum force, N: 1200
Sectional door surface, m²: 16
Maximum sectional door height, mm: depending on the rail used
Maximum door leaf weight, kg: 220
Lifting speed of sectional door, mm / s: 0,1 m/s
Degree of protection IP: IP20
Radio control: 433,92 MHz (maksymalnie 60 pilotów) *(Zwiększenie możliwe podczas instalowania zewnętrznego radia)
Dimensions, mm: 324 × 200 × 115
352,5 × 254 × 135
Management: tryb krokowy (impulsowy)
Fuses: zasilania — 2,5 A
Transfer of traffic: łańcuch / pas
Colour: Black
Type of use: Short-term operation - 5 minutes
Lighting lamp, V ~ / W: 230 / 25 max.
Bulb fixing type: E14
Lamp off time, s: 300
The maximum width of the sectional door, mm: 5000 (recommended)
Transmitter Frequency / Range: 433 MHz / in open areas up to 50 m
Operating temperature range, °C: -20…+55
