SE-1200KIT

  • -5%
  • Zestaw

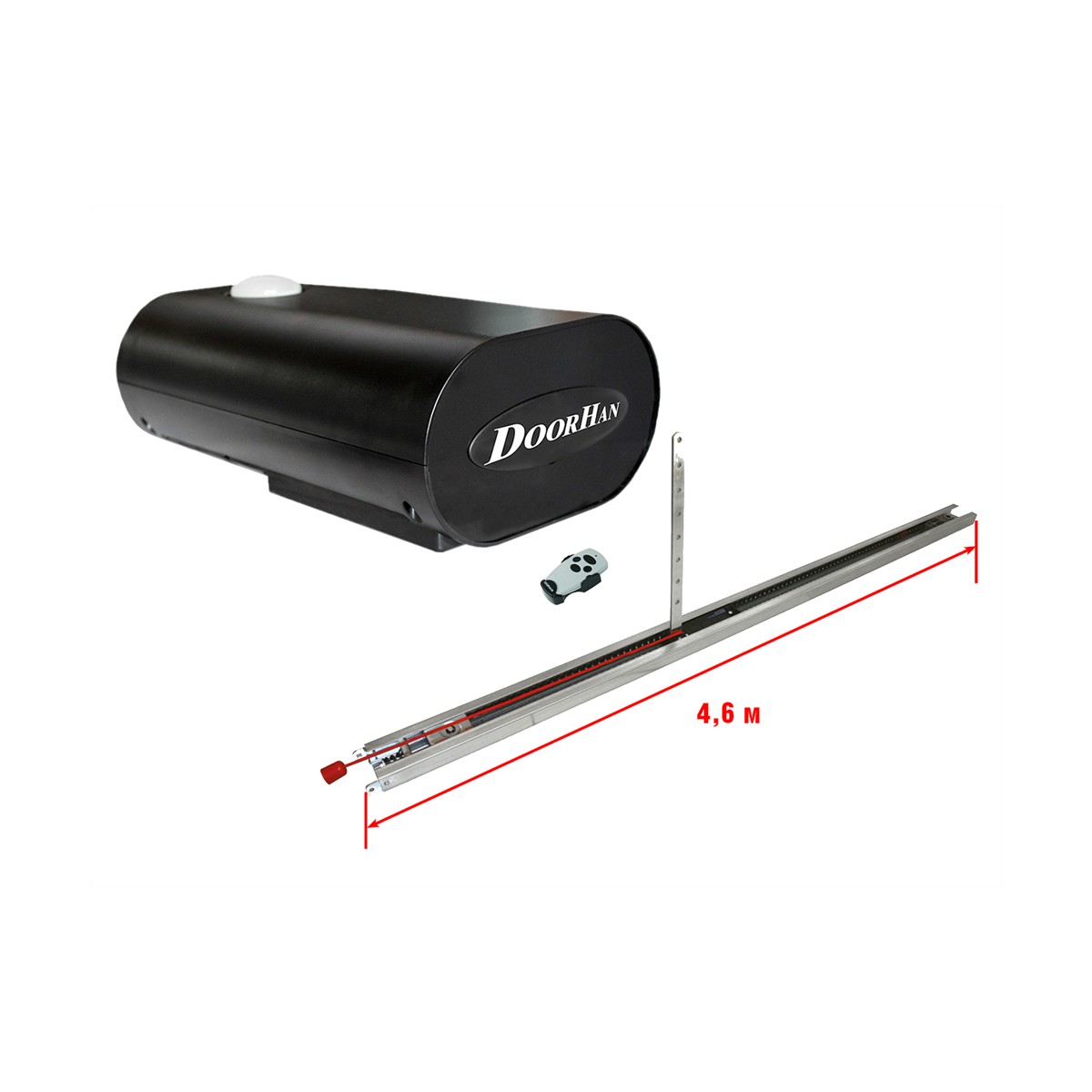

Set for garage doors up to 16m2 and...

Ta paczka zawiera

zł1,542.99 zł1,623.99 -5%

(zł1,485.42 za komplet)

Szczegóły produktu

Supply voltage, V / Hz
220-240 / 50, 60
Motor voltage, V
24 DC
Power consumption, W
300
Standby mode, W
do 6
Maximum force, N
1200
Sectional door surface, m²
16
Maximum sectional door height, mm
depending on the rail used
Maximum door leaf weight, kg
220
Lifting speed of sectional door, mm / s
0,1 m/s
Degree of protection IP
IP20
Radio control
433,92 MHz (maksymalnie 60 pilotów) *(Zwiększenie możliwe podczas instalowania zewnętrznego radia)
Dimensions, mm
324 × 200 × 115
Management
tryb krokowy (impulsowy)
Fuses
zasilania — 2,5 A
Transfer of traffic
łańcuch / pas
Colour
Black
Type of use
Short-term operation - 5 minutes
Lighting lamp, V ~ / W
230 / 25 max.
Bulb fixing type
E14
Lamp off time, s
300
The maximum width of the sectional door, mm
5000 (recommended)
Transmitter Frequency / Range
433 MHz / in open areas up to 50 m
Operating temperature range, °C
-20…+55
SE-1200KIT
