SE-1000PROKIT

  • -5%
  • Artikelbündel

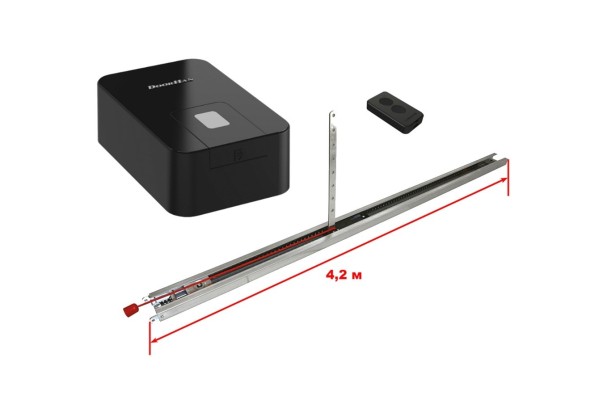

Set for garage doors up to 13m2 and...

Dieses Bündel beinhaltet

€340.99 €357.99 -5%
Bruttopreis

Artikeldetails

Supply voltage, V / Hz
207–253 / 50, 60
Motor voltage, V
24 DC
Power consumption, W
250
Standby mode, W
do 6
Maximum force, N
1000
Sectional door surface, m²
13
Maximum sectional door height, mm
depending on the rail used
Maximum door leaf weight, kg
180
Lifting speed of sectional door, mm / s
0,1 m/s
Degree of protection IP
IP20
Radio control
433,92 MHz (maksymalnie 60 pilotów) *(Zwiększenie możliwe podczas instalowania zewnętrznego radia)
Dimensions, mm
267 x 170 x 92
Management
tryb krokowy (impulsowy)
Fuses
zasilania — 2,5 A
Transfer of traffic
łańcuch / pas
Colour
Black
Type of use
Short-term operation - 5 minutes
Lamp off time, s
300
Transmitter Frequency / Range
433 MHz / in open areas up to 50 m
Operating temperature range, °C
-20…+55
SE-1000PROKIT
